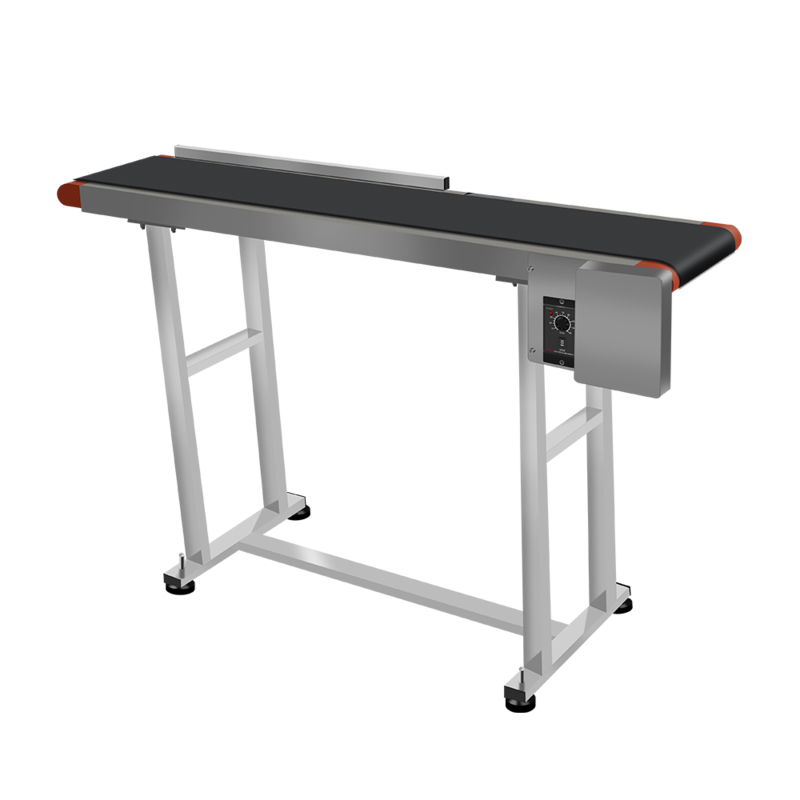

Conveyor table
Conveyor is a kind of equipment with the characteristics of efficient transportation, automatic operation, multi-functionality, safety and reliability. It is suitable for conveying various materials. It can improve production efficiency and reduce manual operations, and is one of the important equipment in the material transportation and processing industry.
Characteristic：
Efficient transportation: The conveyor adopts advanced transportation technology and equipment, which can transport materials from one location to another with high efficiency, improving production efficiency.
Automated operation: This equipment adopts an automated control system, which can realize automatic loading, conveying, unloading and other operations, reducing manual operations and improving work efficiency.
Versatility: The conveyor can be used for various types and specifications of materials, including solid materials, liquid materials, powder materials, etc., and has strong adaptability.
Flexible layout: The conveyor can be flexibly laid out according to the needs of the factory or production line, and can be used for straight conveyance, diagonal conveyance, curved conveyance, etc. to meet the requirements of different sites.
Specification Parameters
| Material | Overall 201 stainless steel |

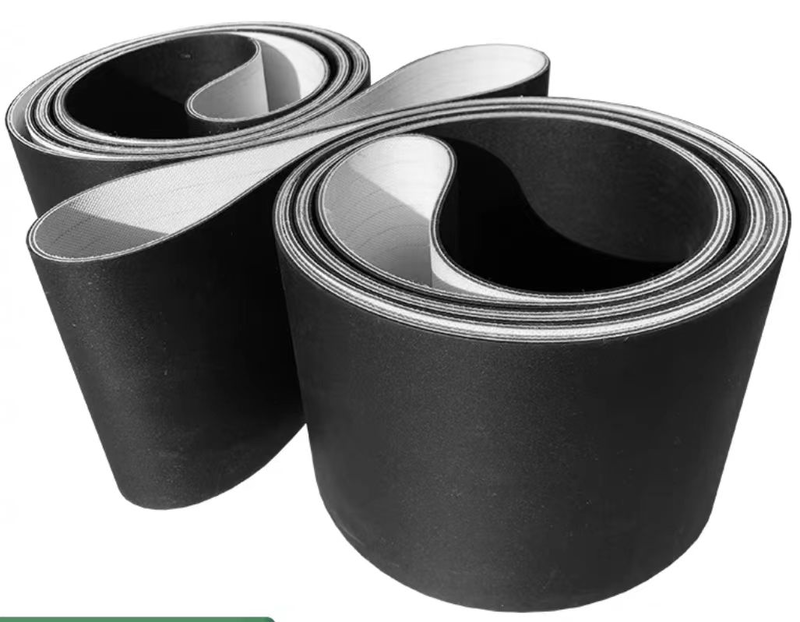

| Belt | PVC thickened belt |
| Machinery net weight | 16KG |
| Belt width | 190mm |
| Voltage power | 220V/60W |

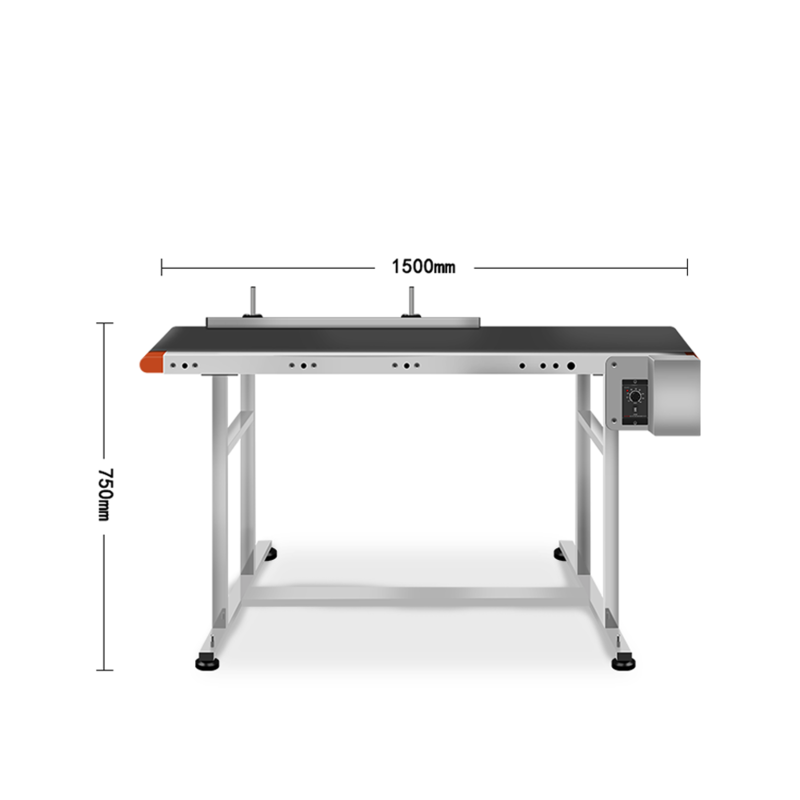

| Conveyor table size | about 1500*700*250mm (±1mm) |
| Transfer platform speed | about 30m/min |

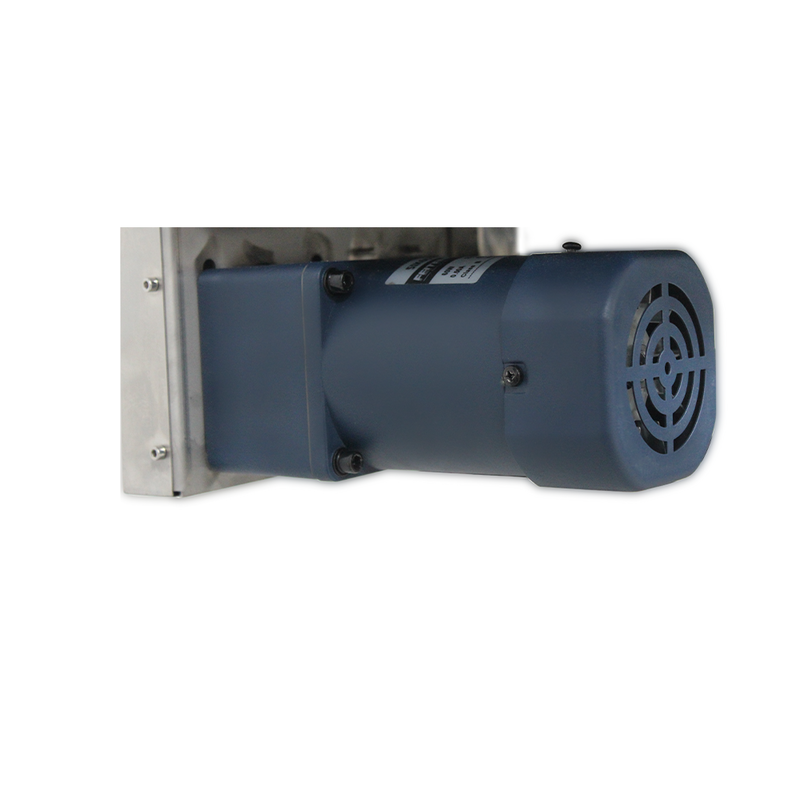

| Machine motor | adjustable speed motor |
| Positioning method | Unilateral adjustable baffle |
| Packing size | about 1530*360*210mm |
